You can print reports using the Print button on the major screens. Each screen has its own set of reports that are related to that screen's contents. With the exception of the FF&E Worksheet, the Design module reports for each form are typically a "list" format and a "detail" format that print all items in the list, whether you have actually used them or not (this is especially true for objects and specifications). There is more about using specific reports is in the next section. Why the exception for the FF&E Worksheet? Remember that the Worksheet shows "what" goes "where" and "how many." The reports found on that screen are much more extensive and are based only on the items that are currently placed in rooms. That is, they show the official project contents, and are therefore the reports you will use for presentations to clients and for ordering reports. These reports have the largest variety of formats and the most extensive options for controlling how much information is printed. (Note: If you have the Design/Purchasing version, another extensive set of reports are on the Orders List and the Expediting screens.) Design/Purchasing System: Please note that there is a separate section for purchasing activity reports and that the Purchasing module also has a Processing command that is used to produce project documents. The basic procedure for printing a report is this:

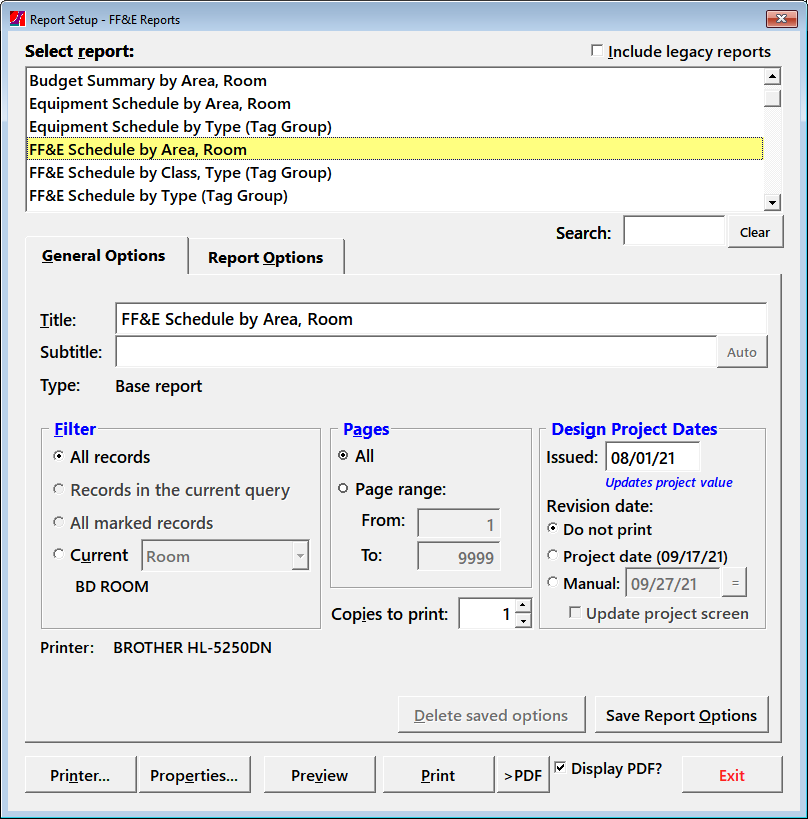

When the form first appears, it is "focused" on the report list and you can begin typing the first few characters of the report name to move closer. You can also use the "Search" tool just beneath the report list to limit the reports you see to a subset of the list. If you are using a older "legacy" report, these will not appear in the list unless the "Include legacy reports" option is checked. The exception is that all saved report options will appear even if they are based on legacy reports (more about saving below). Legacy reports are not guaranteed to function correctly.
If you set an "Issued" date, the project screen will automatically be updated. For the manual revision date, you can have FF&EZ calculate a date based on the latest date found on the Specifications Screen. A manual date can also be used to update the Project Screen's "Revised" date using the option below. Note that individual specification revision dates will still appear on reports that include them.
A common option for reports sorted by area and room or by vendor is to break to a new page when the area or vendor changes. Other options may control how much detail is shown on the report (for example, the "Illustration Sheet" reports can show anything from a very brief description to full ordering information).
Note! Do not change the orientation (portrait vs. landscape) of the printer when printing reports! Database reports are formatted to print within a specific layout, and changing the orientation will not produce desirable results.
The Preview Window includes a menu bar with many useful tools, including the ability to use a "Find" tool to locate specific text and to export the report to other formats. You can select and print to any printer installed on your workstation (or the server, depending on your configuration). See the linked section (below) for more. You must close the preview window prior to using any other functions in FF&EZ. This can be done by clicking on the large red [X] button on the Preview menu bar or by simply pressing the [Esc] key on your keyboard.
By default, all reports use Arial as the font, however, you can change the heading and body fonts to something else by using the Setup Form on the Startup Screen, where you can also add a company logo to the report format. Be aware, though, that not all fonts work well with formatted database reports, especially body fonts that are wider than anticipated in the original layout. If your firm's "style" for specifications is to use all-caps, we highly recommend that you obtain and use a narrow font style ("Arial Narrow" is one). This allows you to use this style without the large amount of extra space that all-caps requires. The last report that you preview or print and the settings for it are retained until you close the editing form from which you called the report setup form. Please note: Some users have reported that fonts in both report previews and printed reports were displaying/printing at a large scale that did not fit within the print area. If this occurs, it is fixed by enabling the "high DPI" setting on the FF&EZ shortcut. See below for more. If you find that you are constantly changing the same report option or report title when you print a certain report, you can save your preferred options, along with a default report title and subtitle, by using the Save report options button on the report setup form: When you click on this button, the Save Report Options dialog box will appear. To save your options, simply give the report a new name (typically, just a meaningful variation on the original report name) and click on the Save button: The name you choose can be

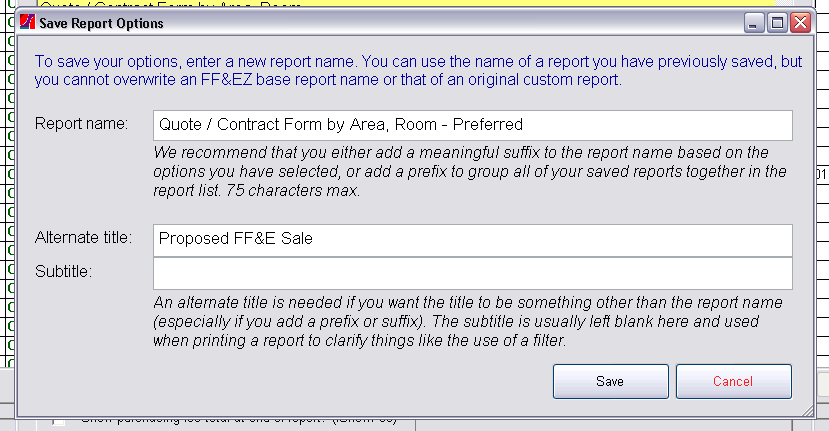

If you use a standard prefix or suffix, you can use the "Search" tool just below the report list to quickly display only the reports with those characters in the name. Before you save the report, though, you have the option of saving an alternate title for the report. Normally, the title of a report is automatically set to the report name, unless an alternate title has been saved as part of the setup (or if you enter one manually). Since you must use a different name to save the report, you may want to enter a more "standard" title here also. Other rules about this feature:
Please note: After a reports update has been installed, it is important that you test your saved option sets to make sure they still work with the updated version of the report. Although it is infrequent, a report option may be occasionally change in order to enhance how the option works (for instance, changing from a "yes/no" checkbox to a multiple choice type). If you have any problems with an existing set of saved options, simply start with the base report again and save the desired options to the same name that you originally used to save options for the old report (replacing it). If you have set up many saved option sets and need to remove those that are no longer needed, you can do so by highlighting one of them and clicking on the Delete saved options button next to the Save button. Note that this button is not enabled if you are currently on an FF&EZ base report or an original custom report. Deleting a set of saved options will never delete the report on which it is based. As of version 3.2.139, FF&EZ includes a more powerful set of tools for use in previewing reports. The new previewer is slightly slower than the "legacy" report engine, but this is because it generates thumbnails and allows you to search the preview for specific text. When the preview appears, you will see the toolbar (the exact shape and position may differ on your PC):

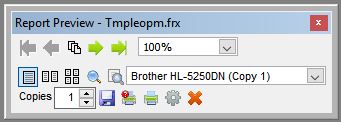

The tools shown are, in order: Go to page - Move to the first page, previous page, a specific page number, the next page and the last page. Note that the [PgUp] and [PgDn] keys also move back and forward a page at a time. Zoom Level Page display - Show a single page, facing pages or four pages at a time. While viewing a preview, you can also switch between single, double and quad-page displays by pressing 1, 2 or 4 on the keyboard. Note: The two- and four-page options will not respond if the Zoom Level % is set too high or is set to "Whole page." Show miniatures - This tool (with a simple magnifying glass as its icon) displays an array of thumbnail images that you can use to got to a specfic page in the report (by clicking on the thumbnail). Find - (Magnifier icon over a page icon) Use this tool to search the previewed report for occurrences of any text you enter. A pop-up into which you can type the search text will appear when you click on this button. You can move from one instance to the next with controls that will appear next to the Find button after you use it the first time. Printer - You can select the destination printer for the report here. Copies - Multiple copies can be produced Save report - Allows you to save the report output to several different file formats. Note: Complicated report formats may not produce a "clean" representation of the printed report for formats like Excel or HTML. You may have to do further formatting for these format types. Note: This method of saving a previewed report does not "remember" the last folder you used to create a PDF file. If you plan to print multiple reports to project-related folder, we recommend you use the [>PDF] command instead. More information is below. Printing preferences - Allows you to change the settings for the selected printer (however, as noted elsewhere, changing the page orientation will produce unsatisfactory results). Print report - Sends the report to the selected printer (not needed for the Save report option). Configurations - Allows you to set certain options related to the Save report command and some general options. Note: As of this writing, these affect all users in a multi-user system. Note: If the report preview always opens in a small window, try using this option to set the window to "Normal" instead. Close report - Closes the preview and returns to FF&EZ (you can also press the [Esc] key). Like all Windows programs, FF&EZ can use a PDF printer if you have one installed on your computer. However, we recommend that you use FF&EZ's built-in PDF export function, which is called directly with the [>PDF] command button and is also available under the Save report option on the advanced Preview menu. The command has the advantage of automatically naming the PDF files with a suitable name (which you can override). This command button also "remembers" the last folder you used and recognizes the default "PDF Output Folder" that can be specified on the Setup Form. Important: PDF files generated using 3rd party printers may be in the PDF "image" format, in which the text cannot be highlighted or edited. We strongly recommend that you use FF&EZ's own [>PDF] command button to produce efficient PDF files. If you want to use a 3rd-party PDF printer, you can get them from a variety of sources at costs ranging from free to several hundred dollars. Popular PDF printers are: PDF995 (www.software995.com ) BullZip PDF (www.bullzip.com ) Amyuni PDF Converter (www.amyuni.com ) Adobe Acrobat (www.adobe.com ) High DPI Compensation / Enlarged Fonts Starting with Windows Vista, a few users reported that fonts in both report previews and printed reports were displaying/printing at a large scale that did not fit within the print area. If you see unusually enlarged fonts on a computer's report output from within FF&EZ, it is fixed by enabling the "high DPI" compatibility setting on the FF&EZ shortcut. Do that with this procedure:
|
